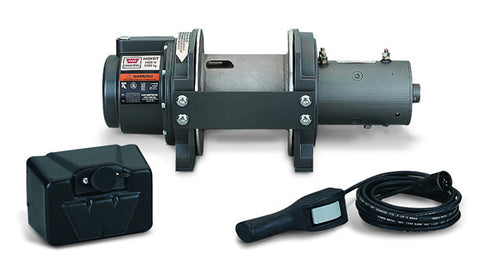

DC3000 LF - Industrial DC Hoist - 3000 lb. Capacity, 12V Motor

PART NUMBER 36945

$ 2,402.87

he DC3000 hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC3000 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.

DC3000 SPECS/PART NUMBERS

Part Number: 85251 12V - Controls and Accessories Available Separately

Part Number: 63897 12V-CCW Controls and Accessories Available Separately

Part Number: 85252 24V - Controls and Accessories Available Separately

Rated Capacity: 3000 lbf (1361 kgf)

Drum Barrel Diameter: 5.31 in (135 mm)

Drum Flange Diameter: 8.9 in (226 mm)

Distance Between Flanges: 5.94 in (151 mm)

Recommended Maximum Wire Rope Diameter: 5/16 in (7.9 mm)

Recommended Minimum Wire Rope Breaking Strength: 10540 lbf (4781 kgf)

Approximate Shipping Weight: 83.0 lbs (37.6 kg)

Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)

Mounting Bolt Torque: 35 - 40 ft*lbf (47 - 54 N*m)

Maximum Layers of Wire Rope: 4

Gear Reduction: 199

Brake Type: Automatic Disc

Contactor/Remote Type: Not Included

Standards Compliance:
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
ASME B30.5

ACCESSORIES

Control Pack-12V: PN 39602

Control Pack-24V: PN 39603

Contactor Only-12V (Standard bracket): PN 34969

Contactor Only-24V (Standard bracket): PN 34970

Contactor Only-12V (w/ bracket for cover): PN 34975

Contactor Only-24V (w/ bracket for cover): PN 34976

Contactor Cover (with remote plug): PN 36648

Contactor Cover (no plug): PN 35169

Remote Control Only: PN 88528

PERFORMANCE BY LAYER - 12V
Drum Layer	Line Load *			No Load Line Speed		Drum Capacity
Drum Layer	lbf	kgf	kN	ft/min	m/min	ft	m
1	3000	1361	13.3	30.4	9.3	25	7.6
2	2700	1225	12.0	33.7	10.3	54	16.5
3	2454	1113	10.9	37.1	11.3	85	25.9
4	2250	1021	10.0	40.5	12.3	119	36.3
* Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended.

FIRST LAYER PERFORMANCE - 12V
Line Load		Current Draw	Line Speed		Duty Cycle
lbf	kgf	Amps	ft/min	m/min	min/10min
0	0	87	30.4	9.3	5.0
600	272	116	23.3	7.1	3.4
1200	544	143	19.5	5.9	2.5
1800	816	172	16.8	5.1	2.1
2400	1089	202	14.8	4.5	1.7
3000	1361	231	13.2	4.0	1.5

PERFORMANCE BY LAYER - 24V
Drum Layer	Line Load *			No Load Line Speed		Drum Capacity
Drum Layer	lbf	kgf	kN	ft/min	m/min	ft	m
1	3000	1361	13.3	31.6	9.6	25	7.6
2	2700	1225	12.0	35.1	10.7	54	16.5
3	2454	1113	10.9	38.6	11.8	85	25.9
4	2250	1021	10.0	42.1	12.8	119	36.3
* Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended.

FIRST LAYER PERFORMANCE - 24V
Line Load		Current Draw	Line Speed		Duty Cycle
lbf	kgf	Amps	ft/min	m/min	min/10min
0	0	44	31.6	9.6	6.8
600	272	63	24.1	7.3	3.9
1200	544	78	20.3	6.2	3.0
1800	816	92	17.9	5.5	2.4
2400	1089	105	16.3	5.0	2.0
3000	1361	120	14.9	4.5	1.8

DC3000 12V Product Datasheet

DC3000 CCW 12V Product Datasheet

Accessories: Control Pack and Remote Control

Control Pack and Remote Control
for the DC Powered Hoist

Industrial control packs and remote controls are sold separately from WARN hoist units.

Here's how to order the correct control pack and remote control that fits your DC-powered hoist:


1.	Locate your hoist model in the chart below.
2.	Order the control pack and remote control to work with your hoist. Control pack and remote are each sold separately.

CONTROL PACKS:
Hoist Model	Motor Type	Control Pack	Contactor Only (with universal bracket)	Contactor Only (with bracket for WARN cover)	Contactor Cover Only (with remote plug)	Contactor Cover Only (w/o remote plug)
DC800-12V	Permanent Magnet	63926	83321	N/A	36648	35169
DC800-24V	Permanent Magnet	84710	83322	N/A	36648	35169
DC1000-12V	Permanent Magnet	63926	83321	N/A	36648	35169
DC1000-24V	Permanent Magnet	84710	83322	N/A	36648	35169
DC1200-CF-12V	Permanent Magnet	63926	83321	N/A	36648	35169
DC1200-CF-24V	Permanent Magnet	84710	83322	N/A	36648	35169
DC1600-LF-12V	Permanent Magnet	40709	34440	34973	36648	35169
DC1600-LF-24V	Permanent Magnet	63752	34968	34974	36648	35169
DC2000-MF-12V	Permanent Magnet	40709	34440	34973	36648	35169
DC2000-MF-24V	Permanent Magnet	63752	34968	34974	36648	35169
DC2000-MF-12V	Series Wound	39602	34969	34975	36648	35169
DC2000-MF-24V	Series Wound	39603	34970	34976	36648	35169
DC2000-LF-12V	Permanent Magnet	40709	34440	34973	36648	35169
DC2000-LF-24V	Permanent Magnet	63752	34968	34974	36648	35169
DC2500-LF-12V	Permanent Magnet	40709	34440	34973	36648	35169
DC2500-LF-24V	Permanent Magnet	63752	34968	34974	36648	35169
DC3000-LF-12V	Series Wound	39602	34969	34975	36648	35169
DC3000-LF-24V	Series Wound	39603	34970	34976	36648	35169
DC4000-12V		39602	34969	34975	36648	35169
DC4000-24V		39603	34970	34976	36648	35169

REMOTE CONTROLS (All Hoist Models):
Industrial Remote, Heavy Duty, 12 foot	88528
Industrial Remote, Heavy Duty, 10 meter	88527
Industrial Remote, Heavy Duty w/ E-stop, 12 foot	63680
