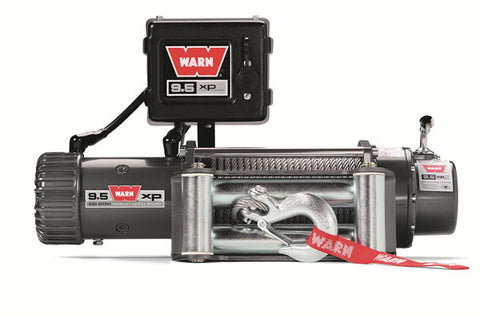

9.5xp - Warn Winch - 9500 lb.- w/Roller Fairlead, Wire Rope

PART NUMBER 68500

$ 1,666.55

The fast, powerful 9.5xp Extreme Performance winch is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. With 9,500 lbs. of pulling power and the fastest line speed of any WARN winch under load, the 9.5xp delivers extreme performance that eats up the competition-even in competition

High-output parallel series wound winch motor is the strongest and most durable in the industry
Extreme-duty winch sealing. Enables superior water resistance
Exclusive brake design. Provides superior operator control when winching
Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
Remote-mount, next-generation control box allows for various mounting options
Remote control with 12' (3.7m) lead
High gloss, chip-resistant powder coat finish. Provides superior corrosion resistance
100' of steel winch rope

9.5XP SPECS/PART NUMBERS

Winch model: 9.5xp

Part Number: 68500 (wire rope, 12V), 86500 (wire rope, CE, International sales only)

Rated Line Pull: 9,500 lbs. (4310 kgs) single-line

Motor: 12V 6 hp (4.48kw), High output parallel series wound

Electrical controls: Contactor

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-stage planetary

Gear ratio: 156:1

Clutch (freespooling): Sliding ring gear

Brake: Automatic mechanical cone brake

Rope: Steel -- 100', 5/16" diameter (30m, 8mm diam.)

Fairlead: Roller fairlead

Recommended battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finish: High-gloss powder coat over primer undercoating

Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Weight: 87 lbs. (39.5 kgs)

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	37.5 (11.43)	71 amps	1/9500 (4313)
2000 (910)	16.6 (5.06)	169 amps	2/8650 (3927)
4000 (1810)	11.8 (3.60)	248 amps	3/7920 (3595)
6000 (2720)	9.3 (2.83)	328 amps	4/7400 (3359)
8000 (3630)	7.4 (2.25)	413 amps	5/6940 (3150)
9500 (4310)	6.2 (1.89)	482 amps

Above performance specs are based on first layer of drum

Winch Dimensions: 22.7" L. x 6.3" D. x 7.7" H.
(577mm L. x 160mm D. x 196 mm H)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

9.5xp Operator's Manual

9.5xp (CE Version) Operator's Manual

9.5xp Parts List
